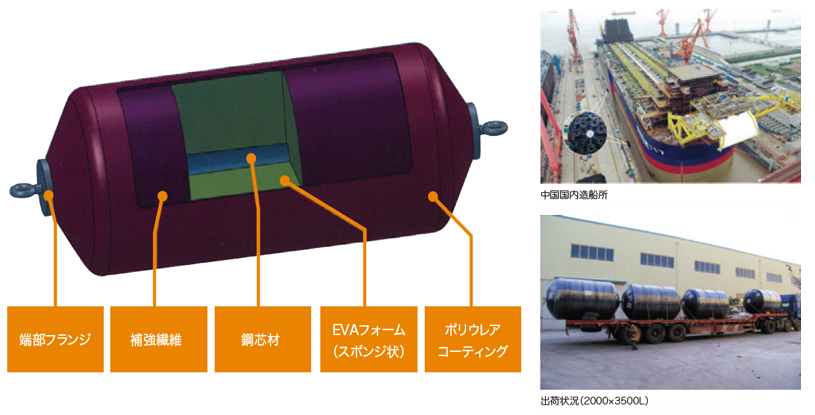

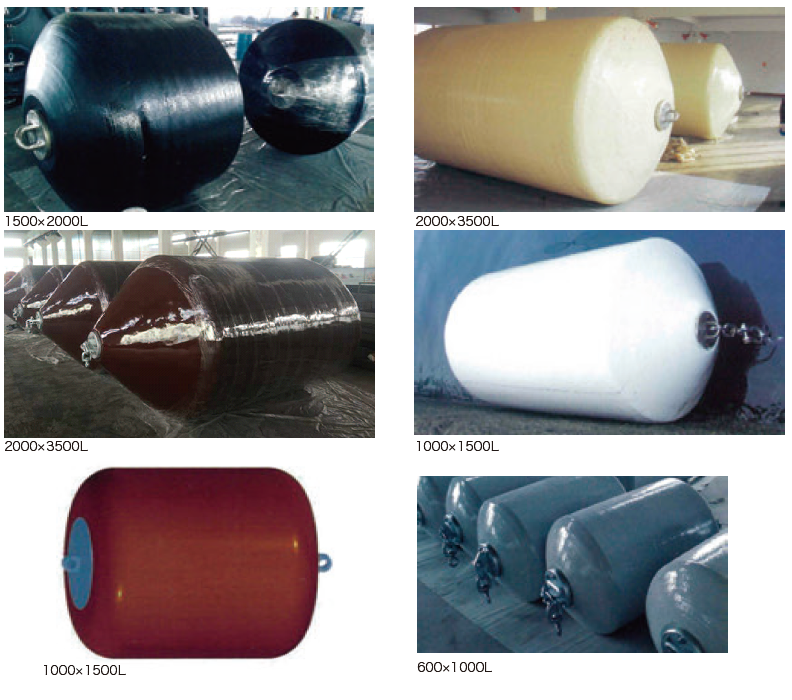

※EVA (Ethylene Vinyl Acetate)

规格 (直径×长度) Specifications (Dia × length)	压缩60% / Compression deflection at 60%		参考重量 Reference Weight (kg)
规格 (直径×长度) Specifications (Dia × length)	反作用力 Reference force (kN)	吸收能量 Energy absorption (kJ)	参考重量 Reference Weight (kg)
500 × 1000L	71	8	34
600 × 1000L	86	12	45
700 × 1500L	161	27	101
1000 × 1500L	205	49	206
1000 × 2000L	274	64	275
1200 × 2000L	337	93	405
1200 × 2400L	390	110	475
1350 × 2500L	463	145	626
1500 × 3000L	624	216	927
1700 × 3000L	696	273	1191
2000 × 3500L	990	456	1923
2000 × 4000L	1110	505	2298
2200 × 4500L	1396	679	2992
2500 × 4000L	1386	781	3434
2500 × 5000L	1750	985	4272
3000 × 5000L	2050	1410	6411
3000 × 6000L	2460	1695	7293
3300 × 6500L	2950	2245	8335
4500 × 9000L	19650	7860	21460

※上述表中未记载的尺寸我们亦可提供报价，敬请咨询。

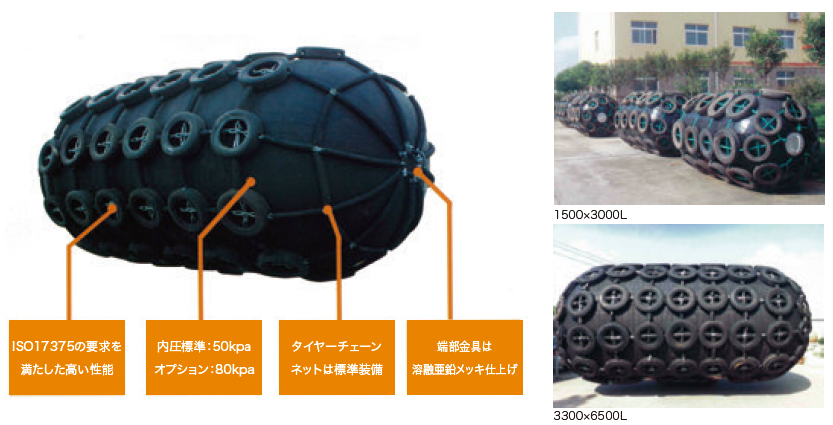

规格 (直径×长度) Nominal size Dia × length	Initial internal pressure	Guaranteed energy absorption	Reaction force at GEA defiection	Hull pressure (internal pressure) at GEA defiection
		GEA	R	P
		Minlmum value at deflection 60 ± 5%	Tolerance ±10%	Reference value
mm	kPa	kJ	kN	kPa
500 × 1000L	50	6	64	132
600 × 1000L	50	8	74	126
700 × 1500L	50	17	137	135
1000 × 1500L	50	32	182	122
1000 × 2000L	50	45	257	132
1200 × 2000L	50	63	297	126
1350 × 2500L	50	102	427	130
1500 × 3000L	50	153	579	132
1700 × 3000L	50	191	639	128
2000 × 3500L	50	308	875	128
2500 × 4000L	50	663	1381	137
2500 × 5500L	50	943	2019	148
3300 × 4500L	50	1175	1884	130
3300 × 6500L	50	1814	3015	146
3300 × 10600L	50	3067	5257	158
4500 × 9000L	50	4752	5747	146
4500 × 12000L	50	6473	7984	154

※上述表中未记载的尺寸我们亦可提供报价，敬请咨询。

规格 (直径×长度) Nominal size Dia × length	Initial internal pressure	Guaranteed energy absorption	Reaction force at GEA defiection	Hull pressure (internal pressure) at GEA defiection
		GEA	R	P
		Minlmum value at deflection 60 ± 5%	Tolerance ±10%	Reference value
mm	kPa	kJ	kN	kPa
500 × 1000L	80	8	85	174
600 × 1000L	80	11	98	166
700 × 1500L	80	24	180	177
1000 × 1500L	80	45	239	160
1000 × 2000L	80	63	338	174
1200 × 2000L	80	88	390	166
1350 × 2500L	80	142	561	170
1500 × 3000L	80	214	761	174
1700 × 3000L	80	267	840	168
2000 × 3500L	80	430	1150	168
2500 × 4000L	80	925	1815	180
2500 × 5500L	80	1317	2653	195
3300 × 4500L	80	1640	2476	171
3300 × 6500L	80	2532	3961	191
3300 × 10600L	80	4281	6907	208
4500 × 9000L	80	6633	7551	192
4500 × 12000L	80	9037	10490	202

※上述表中未记载的尺寸我们亦可提供报价，敬请咨询。
